Waveshare 7inch 1024x600 HDMI LCD IPS Display Capacitive Touch Raspberry Pi Computer monitor

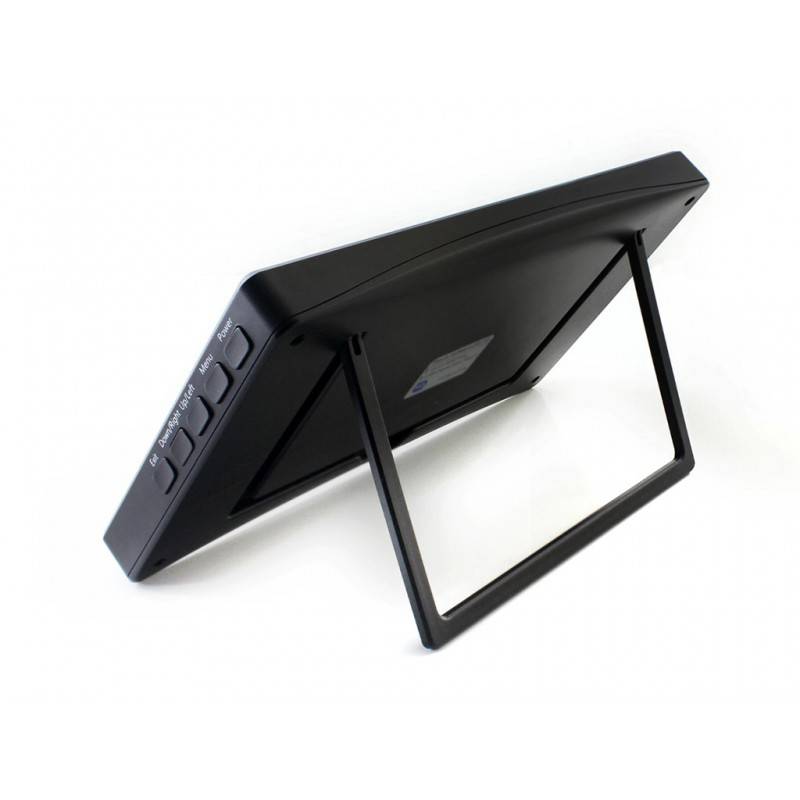

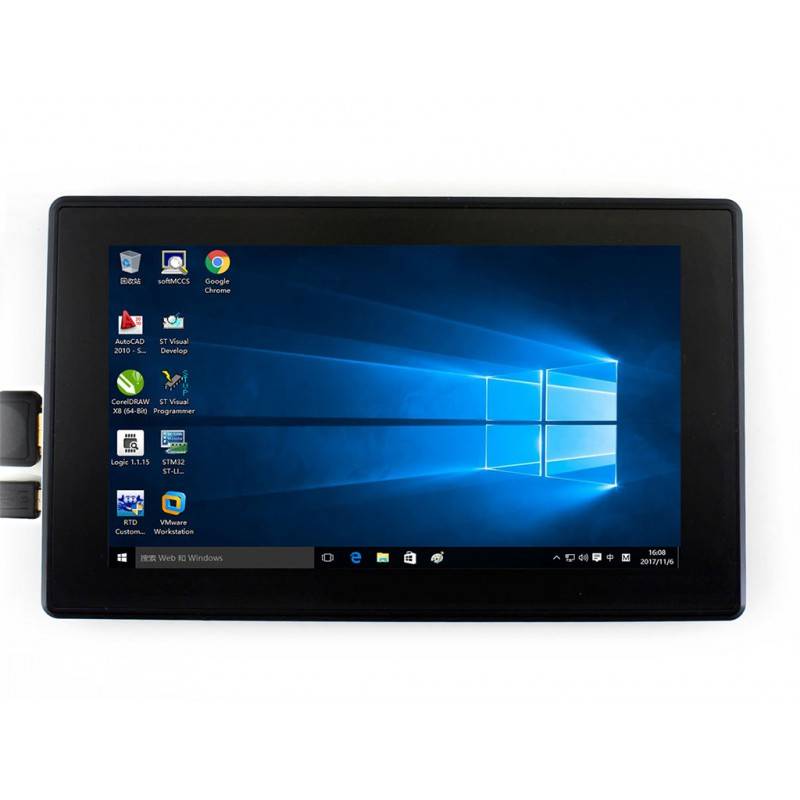

Features7inch IPS screen,1024x600 hardware resolution, configurable by software (up to 1920x1080) Toughened glass capacitive touch panel, 6H hardness Supports popular mini PCs such as Raspberry Pi, BB Black, Banana Pi, as well as general desktop computers When works with Raspberry Pi, supports Raspbian, Ubuntu, WIN10 IOT, single touch, and driver free When work as a computer monitor, supports Windows 10/8.1/8/7, five-points touch, and driver free Multi languages OSD menu, for power management, brightness/contrast adjustment, etc. 3.5mm audio jack, supports HDMI audio output Also supports VGA input  High quality PC case, optional tilt angle: 30°/50° External Dimension



FAQWhy the LCD doesn't work with my Raspbian? To use the LCD with the Raspberry Pi official image, driver should be installed first. Please refer to the user manual.
However, for the first testing, you may want to use our provided image directly. Why the LCD still doesn't work with the Waveshare provided image? Make sure the hardware connection is correct and connects fine.
Make sure the image in TF card is burnt correctly.
The PWR will keep on and the ACT will keep blinking when the Raspberry Pi starts up successfully, in case both of the two LEDs keep on, it is possible that the image was burnt incorrectly OR the TF card was in bad contact. Which power supply should I use? It is strongly recommended to use a stand-alone 5V/2A power adapter, because the PC's USB port might have not enough power to support the Pi and LCD. For more info, please check the wiki page.Selection GuideNote :
Pi 3B = Raspberry Pi 3 Model B
If the LCD is intended to play videos, please choose the one with HDMI display interface for better experience.Packagelist1x 7inch HDMI LCD (H) (with case) 1x HDMI cable1x USB type A plug to micro B plug cable1x DVD
