Sick S30A-6011BA, Sicherheits-Laserscanner, P/n: 1023546 kaufen

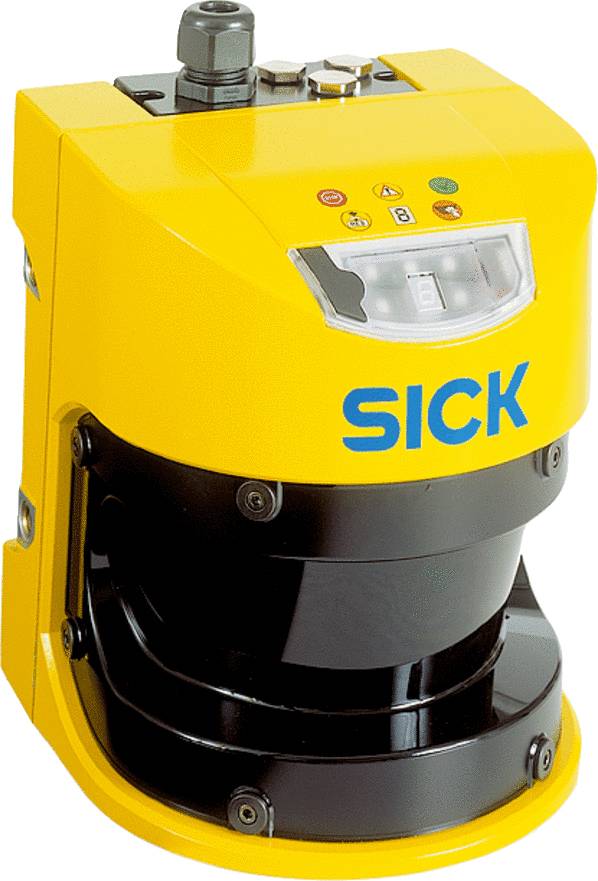

Sick S30A-6011BA, Sicherheits-Laserscanner, P/n: 1023546-0

Produkt-Art

Sicherheits-Laserscanner

Typ

S30A-6011BA

Kleinstes zu erkennendes Objekt (Durchmesser)

30 mm

Anschluss

Stecker

Reichweite (max.)

5.5 m

Sofort-Lieferung Do., 24. Sept.

1 Stück

Neu

Rechnungsstellung für alle Partner-Artikel jetzt direkt durch Conrad

Anzahl

Stück

Gesamt

3.980,15 €

zzgl. MwSt.

Kostenfreier Versand

Nur noch 1 Stück verfügbar

14 Tage Rückgaberecht inklusive

Rechtliche Bedenken melden

Umwelt & Entsorgung (Elektrogeräte, Batterien, Verpackungen)

Highlights & Details

Sick S30A-6011BA, Sicherheits-Laserscanner, P/n: 1023546

Laserscanner,Scanner

Technische Daten

Model: Sensor without system plug
Application: Indoor
Protective field range: 5.5m
Warning field range: 49m (20m at 20% reflectivity)
Distance measuring range: 49m
Number of simultaneously monitored protective fields: 4
Type of field set: Triple field sets, dual field sets
Number of field sets: 1
Number of fields: 4
Number of monitoring cases: 1
Scanning angle: 190
Resolution (can be configured): 30mm, 40mm, 50mm, 70mm, 150mm
Angular resolution: 0.5, 0.25, depending on range and resolution
Response time: 60ms
Protective field supplement: 100mm
Number of multiple samplings: 2... 16, configurable
Delay of automatic reset: 2s... 60s, configurable
Type: Type 3(IEC6149
Safety integrity level: SIL 2(IEC6150
Category: Category 3ENISO1384
Performance level: PLdENISO1384
PFH D (mean probability of a dangerous failure per hour): 8.0x10 8
T M (mission time): 20years ENISO1384
Safe state in the event of a fault: At least one OSSD is in the OFF state.
Restart interlock:
External device monitoring (EDM):
Multiple sampling:
Simultaneous monitoring:
Contour as a reference:
Integrated configuration memory:
Measured data output: Via RS422
Safe SICK device communication via EFI:
Protection class: II (EN5017
Supply voltage V s : 24VDC (16.8VDC... 28.8VDC)
Power consumption: 0.8A 2.3A
Outputs:
Output signal switching devices (OSSDs): 2x 500mA
Application diagnostic outputs: 3x 100mA
Outputs:
Output signal switching devices (OSSDs): 2x 500mA
Application diagnostic outputs: 3x 100mA
Dimensions (Wx Hx D): 155mmx 185mmx 160mm
Weight: 3.3kg
Housing material: Aluminum die cast
Housing color: RAL 1021(yellow)
Front screen material: Polycarbonate
Front screen surface finish: Outside with scratchresistant coating
Enclosure rating: IP65 (EN6052
Ambient operating temperature: 10C... +50C
Storage temperature: 25C... +50C
Vibration resistance: IEC6006826, IEC60068264, IEC6072135, IECTR 6072145, IEC614963
Class: 5M1 (IEC607213
Shock resistance: IEC60068227, IEC6072135, IECTR 6072145, IEC614963
Class: 5M1 (IEC607213
Continuous shock: 50m/s, 11ms
: 100m/s, 16ms
Vibration resistance: IEC6006826, IEC60068264, IEC6072135, IECTR 6072145, IEC614963
Class: 5M1 (IEC607213
Shock resistance: IEC60068227, IEC6072135, IECTR 6072145, IEC614963
Class: 5M1 (IEC607213
Continuous shock: 50m/s, 11ms
: 100m/s, 16ms
Type of light: Pulsed laser diode
Wave length: 905nm
Detectable remission factor: 1.8%... >1,000%, reflectors
Laser class: 1(21CFR 1040.10and 1040.11, IEC60825
EU declaration of conformity
UK declaration of conformity
ACMA declaration of conformity
ChinaRoHS
China GB Certificate
cULus Certificate
ECTypeExamination approval
ECLASS 5.0: 27272705
ECLASS 5.1.4: 27272705
ECLASS 6.0: 27272705
ECLASS 6.2: 27272705
ECLASS 7.0: 27272705
ECLASS 8.0: 27272705
ECLASS 8.1: 27272705
ECLASS 9.0: 27272705
ECLASS 10.0: 27272705
ECLASS 11.0: 27272705
ECLASS 12.0: 27272705
ETIM 5.0: EC002550
ETIM 6.0: EC002550
ETIM 7.0: EC002550
ETIM 8.0: EC002550
UNSPSC 16.0901: 39121528
