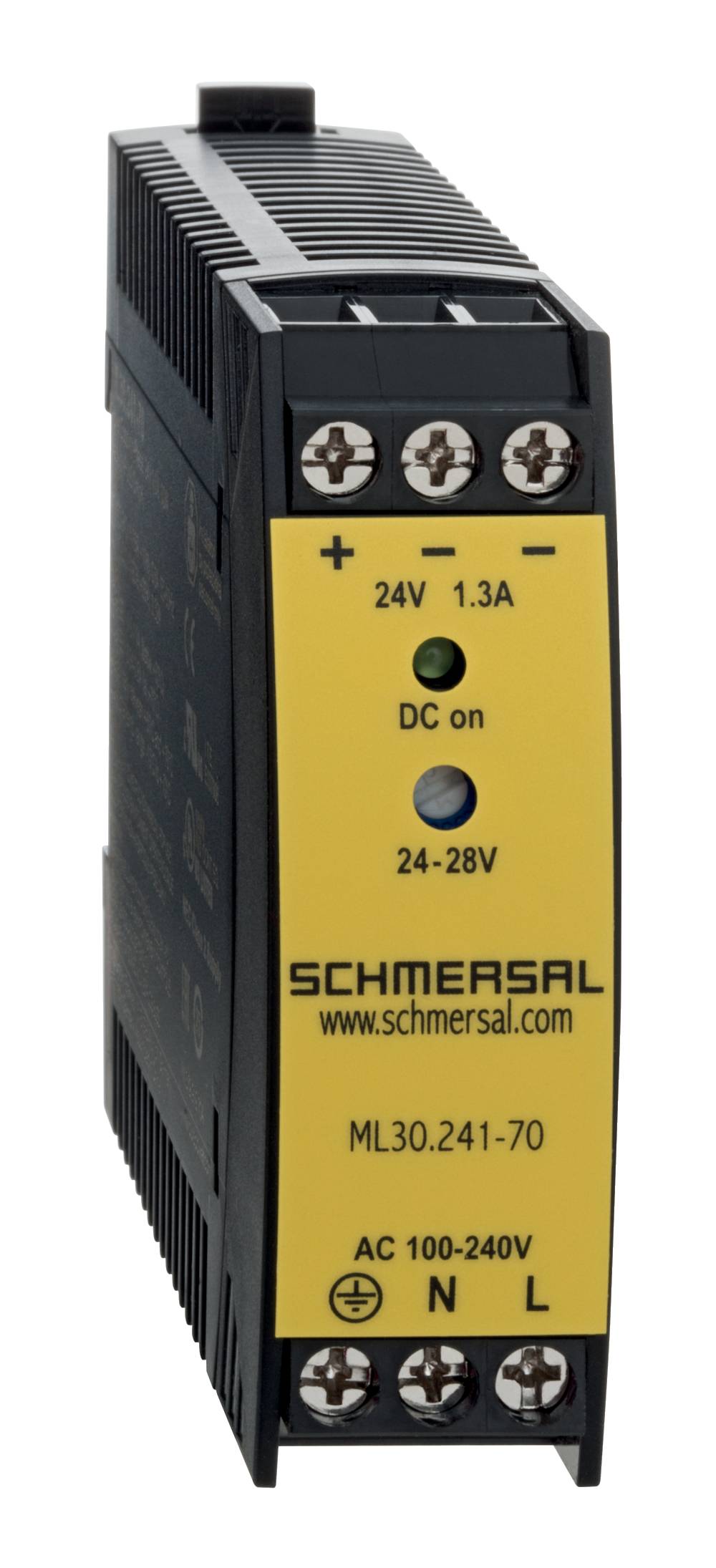

Schmersal ML30.241-70 Power supply , P/N: 103015923
Hst.-Teile-Nr.:
Bestell-Nr.:
18 Stück
Neu
Rechnungsstellung für alle Partner-Artikel jetzt direkt durch ConradAnzahl
Gesamt
70,43 €
zzgl. MwSt.
& 14 Tage Rückgaberecht inklusive
Technische Daten
- Product type description: ML30.241-70
- Article number (order number): 103015923
- EAN (European Article Number): 4030661505275
- eCl@ss number, version 12.0: 27-04-07-01
- eCl@ss number, version 11.0: 27-04-07-01
- eCl@ss number, version 9.0: 27-04-07-01
- ETIM number, version 7.0: EC002540
- ETIM number, version 6.0: EC002540
- Standards: EN 50178, EN IEC 62061, IEC 60364-4-41, EN IEC 60947-5-1, EN IEC 60947-5-3, EN IEC 60947-5-5, IEC 62103, EN IEC 60204-1, EN IEC 60947-1
- Climatic stress: IEC 60068-2-30
- Gross weight: 140 g
- Integral system diagnostics, status: Yes
- Number of LEDs: 1
- Mounting: Snaps onto standard DIN rails to IEC 60715
- Termination: Screw terminals
- Termination: rigid or flexible
- Cable section, minimum: 0.5 mm²
- Cable section, maximum: 6 mm²
- Tightening torque of Clips: 1 Nm
- Width: 22.5 mm
- Height: 75 mm
- Depth: 91 mm
- Degree of protection of the enclosure: IP20
- Ambient temperature: -10 ... +70 °C
- Storage and transport temperature: -40 ... +85 °C
- Resistance to vibrations: 2
- Restistance to shock: 30 g 6 ms, 20 g 11 ms (IEC 60068-2-27)
- Degree of pollution: 2
- Frequency range: 50 Hz, 60 Hz
- Operating voltage: 100 ... 240 VAC -15 % / +10 %
- Type of voltage range: AC
- Rated operating voltage: 100 ... 240 VAC
- Operating current: 0.3 mA, 0.54 mA
- Rated AC voltage for controls, 50 Hz, minimum: 100 VAC
- Rated control voltage at AC 50 Hz, maximum: 240 VAC
- Rated AC voltage for controls, 60 Hz, minimum: 100 VAC
- Rated control voltage at AC 60 Hz, maximum: 240 VAC
- Rated AC voltage for controls at DC minimum: 110 VDC
- Rated control voltage at DC, maximum: 300 VDC
- Output voltage DC: 24 ... 28 VDC
- Maximum output current: 1.1A / 28VDC, 1.3A / 24VDC
- Output power, maximum: 30 W
- Maximum output current
- EMC rating: EMC-Directive
- Typ
ML30.241-70
- UKCA
Ja
Beschreibung
Hutschienen-Netzteil für 1-Phasen-Systeme 100-240V Weitbereichseingang Ausgang: 24-28VDC / 1,3-1,1A / 30W Wirkungsgrad bis zu 89,4% Baubreite 22,5mm
